The Shimpo LCD or LED Display Contact/Non-Contact Tachometer combines laser precision with durable construction for a quality tool that will last. Take both contact and non-contact RPM measurements in the field, with a range of up to 20 feet for non-contact applications.
The Shimpo Tachometer is offered with your choice of either an LCD or LED display. The LCD display shows black numbering on a lighter background, while the LED displays vivid red numbering on a black background.
This handheld tachometer features Shimpo's rugged die-cast aluminum housing to stand up to even the toughest of work conditions. With a 25-40 hour continuous-use battery life, you won't be concerned about any downtime in the field.
The Shimpo LCD or LED Display Contact/Non-Contact Tachometer with 6" or 12" Circumference Measuring Wheel [DT-205LR DT-207LR] offers precision you can rely on.
Features
- Unmatched accuracy measuring speeds up to 99,999 rpm
- Die-cast aluminum housing offers durability no matter the conditions
- Memory capacity includes last, max, min, plus 10 more measurements
- Handheld, ergonomic design for field work
- LCD display or bright red LED display
- 6" or 12" circumference measuring wheel
- NIST Certificate included for quality assurance
Specifications
| Dimensions | 6.6'' L (167.5mm) x 2.4'' W (60mm) x 1.8'' H (46mm) Length with contact adapter: 8.25" L (209mm) |
| Display range | 6 - 99,999 rpm |
| Accuracy | ±1 rpm: 6 - 8,300 rpm ±2 rpm: 8,300 - 25,000 rpm ±0.006% of reading ±1 digit (±6 rpm max.) 25,000 - 99,999 rpm |
| Measuring units | RPM (with contact adapter) for YPM, mPM, FPM, IPM and length (yrd, m, ft, and in) |
| Memory | Stores 13 readings, retained for 5 minutes Last, max, min, and 10 extra measurements |
| Update time | 1 second |
| Laser sensing distance | 1'' (25.4mm) to 20' (6m) |
| Display | LCD: 5 digit, 0.47" H (12 mm) LED: 5 digit, 0.4" H (10 mm) |
| Power | 2 AA 1.5V batteries |
| Battery life | 25 - 40 hrs |
| Temperature limits | 32° - 113° F (0° - 45° C) |
| Materials | Die-cast aluminum housing |
| Approvals | CE Mark |
| Warranty | 2 years |
| Included accessories | Two AA batteries, reflective tape, two cone adapters, funnel adapter, 3.5'' extension shaft, carrying case, NIST certificate, master wheel (6'' or 12'' cir.), and contact adapter |

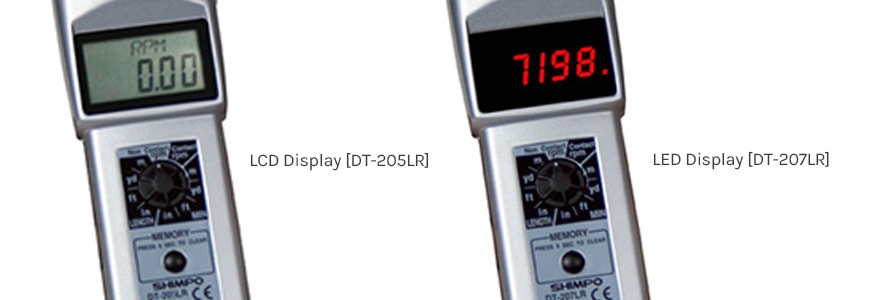

Display
The Shimpo Contact/Non-Contact Tachometer is available with either an LCD or LED display. Both displays show up to five digits. The LCD display features black font on a lighter background, while the LED display shows vivid red font on a black background. The LCD display is 0.47" H (12 mm) and the LED display is 0.4" H (10 mm).

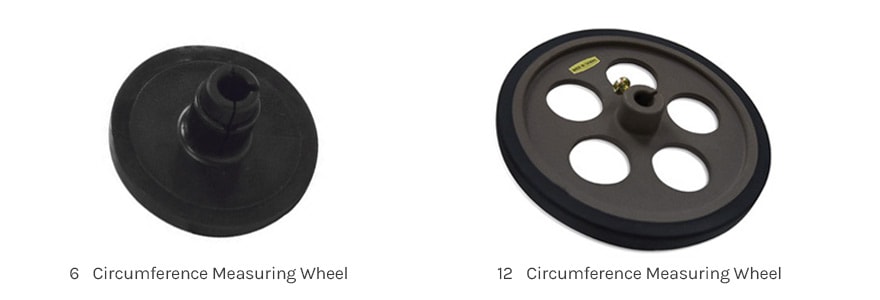

Measuring Wheel
The Shimpo Contact/Non-Contact Tachometer comes standard with a 6" circumference measuring wheel, or upgrade to the 12" circumference measuring wheel.
The larger measuring wheel is useful for applications that need to test at higher speeds. The larger wheel will rotate more slowly than the smaller wheel, facilitating safe but reliable measurements.
![Shimpo LCD or LED Display Contact/Non-Contact Tachometer with 6'' or 12'' Measuring Wheel [DT-205LR DT-207LR]](/content/img/product-learn-mores/smp077-LCD-tachometer-measuring-wheel-learn-more.jpg)
This product comes standard with a 2-year warranty.
